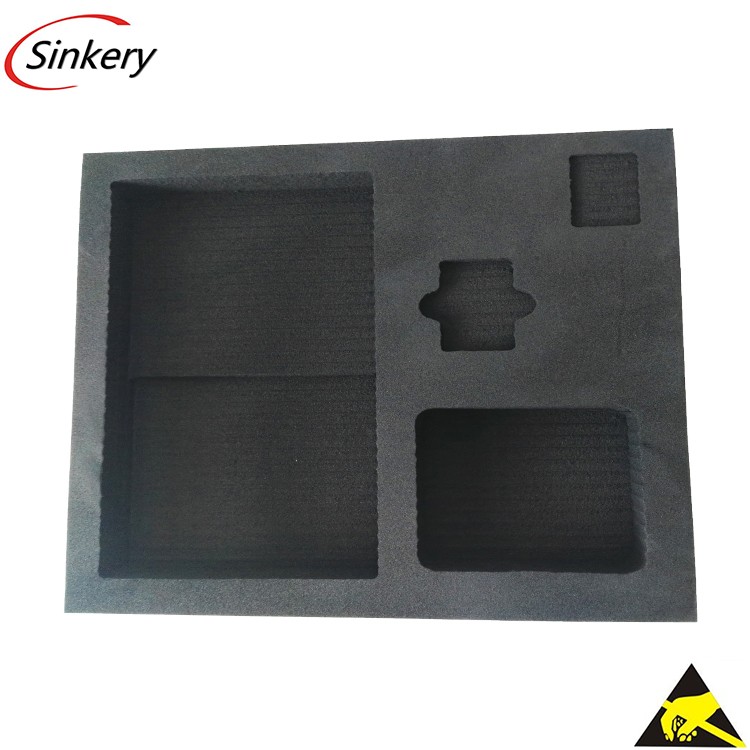

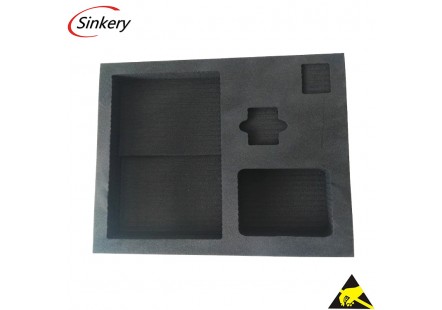

High density CNC EVA foam
High density CNC EVA foam
High density EVA foam means it has the higher strength and hardness, it can be CNC processed by the carving machine with integrated molding.
Product Details
High density CNC EVA foam
High density EVA foam can be used for higher packaging requirements, with the integrated molding technology.
The foam can be manufactured without any other process like die cutting or adhesive. That makes the foam better looks and suitable for higher standard packaging solutions.
| Technical Specification | |
| Thickness | 3mm-50mm, can be customized according to customer's requests. |
| Hardness | 30-70 Shore C |
| Temperature Resistance | - 60℃ to 120℃ |
| Color |
Normally black and red, other colors can be customized |
| Certification | RoHS, SGS, ISO9001, etc. |
| Surface Resistance |
103 - 109 Ω |
| Density |
Generally 90-100 kg/m3 |
| Compressive Strength |
≥60kPa |
| Tensile Strength |
≥500kPa |
| Elongation At Break |
≥150% |
| Tearing Strength |
16N/cm |
