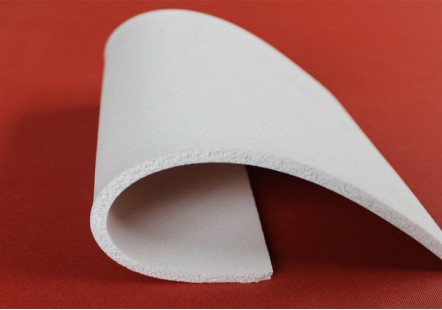

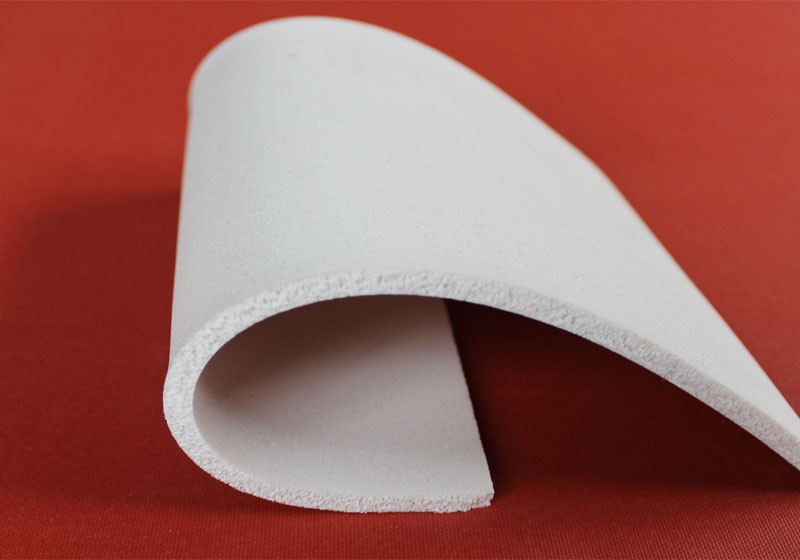

White Color Silicone Rubber Foam
White Color Silicone Rubber Foam
Silicone Rubber Foam has excellent heat resistance, cold resistance, dielectric, ozone resistance and resistance to atmospheric aging and other properties.The outstanding performance for silicone is the use of temperature. Can be used at -60℃ (or lower temperature) to +280℃ (or higher) for a long time.Due to the stable chemical properties, high adsorption performance, higher mechanical strength, good thermal stability, it is widely used in automotive, aerospace, computers, fax machines, printers, high temperature parts, Kitchen utensils, appliances and other equipment.
Product Details
Characteristics of silicone rubber sponge:
1. UV, ozone resistance, resistance to extreme temperature and flame retardant
2. The sealing ability, can effectively prevent small particles and rain
3. Seal, dust proof, moisture proof, air tight and light shielding, vibration isolation
Colors:
In addition to red, gray, color, white and black can also be made to other colors
Special specification:
Minimum width: not limited
Minimum length: not limited
Minimum thickness: 1.0mm
Max width: 1200mm
Max length: not limited
Max thickness:30mm
|
Property |
Unit |
Data |
Standard |
Remark |
|
Tensile Strength |
Kn/m |
55 |
ASTM D1458 |
|
|
Compressive Strength |
PSI |
4350 |
ASTM D412 |
|
|
Ultimate Elongation |
% |
150 |
ASTM D412 |
|
|
Durometer Hardness |
shore A |
22±3 |
ASTM 2240 |
|
|
Temprature Range |
℉ |
-75--480 |
En344 |
|
|
Density |
lbs/cu in |
0.031-0.037 |
ASTM D792 |
|
|
Thermal Conductivity |
W/m-k |
1 |
ASTM D5470 |
|
|
Breakdown Voltage |
VAC |
﹥3000 |
ASTM D149 |
|
|
Dielectric Constant |
1000HZ |
5.5 |
ASTM D150 |
|
|
Fire-protection Rating |
---- |
ASTM U.L |
||
|
Tensile Strength |
PSI |
9-19 |
ASTM D1056 |
|
|
Copressiom Deflection |
PSI |
200 MIN |
ASTM D412 |
|
|
Compression Set |
% |
25 MAX |
ASTM D1056 |
|
|
Water Absorption |
% |
10 MAX |
ASTM D1056 |
|
|
Temprature Range |
℉ |
-75-480 |
||
|
Density |
LBS/CU IN |
0.031 |
ASTM D297 |
|
|
Fire Retardant |
YES |
94V-0 |
ASTM U.L |
|
|
Adhesive |
Acrylic |
