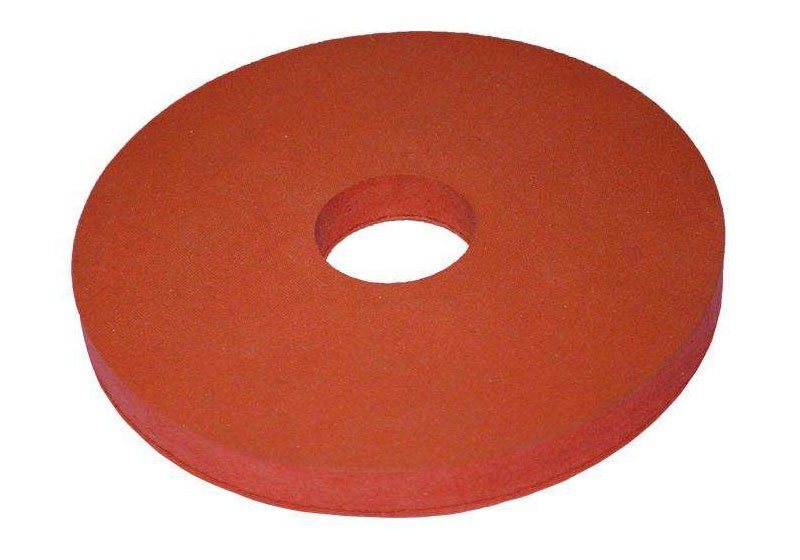

Silicone Foam Gasket

Purpose And Needs Of Silicon Foam Gasket

Characteristics of silicone rubber sponge:
1. UV, ozone resistance, resistance to extreme temperature and flame retardant
2. The sealing ability, can effectively prevent small particles and rain
3. Seal, dust proof, moisture proof, air tight and light shielding, vibration isolation

Colors:
In addition to red, gray, color, white and black can also be made to other colors

Special specification:
Minimum width: not limited
Minimum length: not limited
Minimum thickness: 1.0mm
Max width: 1200mm
Max length: not limited
Max thickness:30mm

Property	Unit	Data	Standard	Remark
Tensile Strength	Kn/m	55	ASTM D1458
Compressive Strength	PSI	4350	ASTM D412
Ultimate Elongation	%	150	ASTM D412
Durometer Hardness	shore A	22±3	ASTM 2240
Temprature Range	℉	-75--480	En344
Density	lbs/cu in	0.031-0.037	ASTM D792
Thermal Conductivity	W/m-k	1	ASTM D5470
Breakdown Voltage	VAC	﹥3000	ASTM D149
Dielectric Constant	1000HZ	5.5	ASTM D150
Fire-protection Rating	----		ASTM U.L
Tensile Strength	PSI	9-19	ASTM D1056
Copressiom Deflection	PSI	200 MIN	ASTM D412
Compression Set	%	25 MAX	ASTM D1056
Water Absorption	%	10 MAX	ASTM D1056
Temprature Range	℉	-75-480
Density	LBS/CU IN	0.031	ASTM D297
Fire Retardant	YES	94V-0	ASTM U.L
Adhesive	Acrylic

High Temperature Silicone Foam Gasket

Silicone foam gasket are used largely for gaskets, cushioning pads, tape and for various other things as the material is specifically designed and developed for high performance applications where function is paramount. Such pads are used across different industries where long term performance is required. Such foam is developed from platinum cured, liquid silicone rubber with raw material to expand and dispensed on a continuous casting line that is followed by heat cured. Not to mention the expansion process that is controlled to create a range of products having different densities, softness, and firmness and cell structures. Silicone foam materials have smooth skin on cushioning, dust sealing and light water sealing. They are closed cell silicone foam materials that are used for outdoor gaskets, wash down gaskets and resilient cushioning pads.

Depending on your choice and requirement, you will have some better options of fulfilling your requirement by going online and reaching the right company that is bringing to you such silicone foam gaskets. You have to choose the right one. Sinkery Foam is a one stop reliable name bringing to you the best quality and advanced foam gaskets for various purposes. We take responsibility of on-time delivery, documentation, custom clearance and provide you precise information about the material. You can place your order from anywhere and anytime and get them delivered to your address. Our main motive is to bring to you something highly advanced. Simply go through our collection of silicone foam gasket and place your order.

Purpose And Needs Of Silicon Foam Gasket

It is one of the materials and it is made of synthetic rubber. That’s why silicon foam has the application in the pharmaceutical and food processing industries. This silicone foam gasket is commonly used for manufacturing equipment seals. This product is manufactured by platinum cured, liquid silicon rubber. It has many benefits such as it gives a wide range of operating temperature and the silicon foam temperature range is minus 67 degrees Fahrenheit to 392 degrees Fahrenheit. The closest cell products of silicon foam give the best water sealing with low compression force. The open and closed cell products are used for sealing out dust with low compression force.

The silicone foam rubber material is very resilient and more flexible for the outdoor environment. Both freezing and hot condition it makes excellent gasket range and cushion. This material has different specifications than silicon sponge materials. This silicon foam is lightweight products, and this foam offers excellent compression set of resistance and it is the ability to rebound the original thickness. These products have outstanding UV and ozone resistance that’s why it provides long term performance. Most of the silicon products carried by UL 94 flame and UL 50 rated of gaskets.
