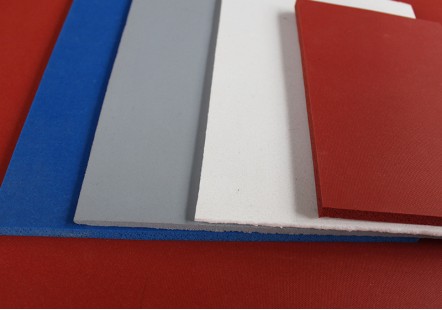

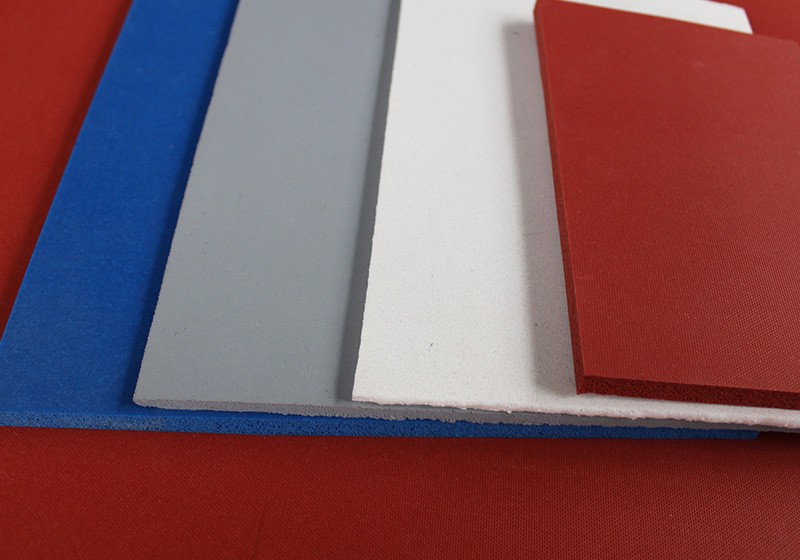

High-temperature Silicone Foam Sponge
High-temperature Silicone Foam Sponge
Product Details
High-temperature Silicone Foam Sponge Description:
1. UV, ozone resistance, resistance to extreme temperature and flame retardant
2. The sealing ability, can effectively prevent small particles and rain
3. Seal, dust proof, moisture proof, air tight and light shielding, vibration isolation
Colors:
In addition to red, gray, color, white and black can also be made to other colors
Special specification:
Minimum width: not limited
Minimum length: not limited
Minimum thickness: 1.0mm
Max width: 1200mm
Max length: not limited
Max thickness:30mm
|
Property |
Unit |
Data |
Standard |
Remark |
|
Tensile Strength |
Kn/m |
55 |
ASTM D1458 |
|
|
Compressive Strength |
PSI |
4350 |
ASTM D412 |
|
|
Ultimate Elongation |
% |
150 |
ASTM D412 |
|
|
Durometer Hardness |
shore A |
22±3 |
ASTM 2240 |
|
|
Temprature Range |
℉ |
-75--480 |
En344 |
|
|
Density |
lbs/cu in |
0.031-0.037 |
ASTM D792 |
|
|
Thermal Conductivity |
W/m-k |
1 |
ASTM D5470 |
|
|
Breakdown Voltage |
VAC |
﹥3000 |
ASTM D149 |
|
|
Dielectric Constant |
1000HZ |
5.5 |
ASTM D150 |
|
|
Fire-protection Rating |
---- |
ASTM U.L |
||
|
Tensile Strength |
PSI |
9-19 |
ASTM D1056 |
|
|
Copressiom Deflection |
PSI |
200 MIN |
ASTM D412 |
|
|
Compression Set |
% |
25 MAX |
ASTM D1056 |
|
|
Water Absorption |
% |
10 MAX |
ASTM D1056 |
|
|
Temprature Range |
℉ |
-75-480 |
||
|
Density |
LBS/CU IN |
0.031 |
ASTM D297 |
|
|
Fire Retardant |
YES |
94V-0 |
ASTM U.L |
|
|
Adhesive |
Acrylic |
High Temperature Silicone Foam Gasket
Silicone foam gasket are used largely for gaskets, cushioning pads, tape and for various other things as the material is specifically designed and developed for high performance applications where function is paramount. Such pads are used across different industries where long term performance is required. Such foam is developed from platinum cured, liquid silicone rubber with raw material to expand and dispensed on a continuous casting line that is followed by heat cured. Not to mention the expansion process that is controlled to create a range of products having different densities, softness, and firmness and cell structures. Silicone foam materials have smooth skin on cushioning, dust sealing and light water sealing. They are closed cell silicone foam materials that are used for outdoor gaskets, wash down gaskets and resilient cushioning pads.
Depending on your choice and requirement, you will have some better options of fulfilling your requirement by going online and reaching the right company that is bringing to you such silicone foam gaskets.You have to choose the right one. Sinkery Foam is a one stop reliable name bringing to you the best quality and advanced foam gaskets for various purposes.
We take responsibility of on-time delivery, documentation, custom clearance and provide you precise information about the material. You can place your order from anywhere and anytime and get them delivered to your address. Our main motive is to bring to you something highly advanced. Simply go through our collection of silicone foam gasket and place your order.
