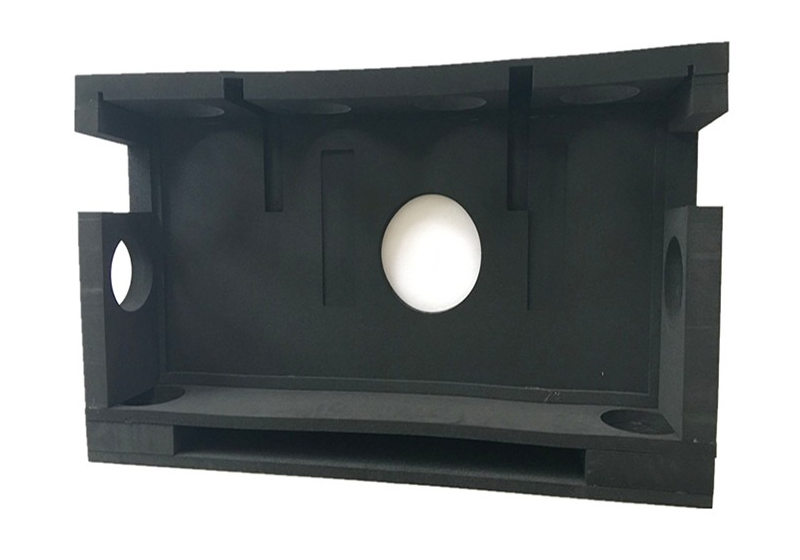

Foam Carving
Foam Carving
Product Details
Foam Carving Product details:
Material
IXPE
Type
Conductive IXPE Foam
Thickness
1-100mm
Color
Black
Surface Resistance
103-109 Ω
Certificate
SGS, ISO9001, ROHS
MOQ
No MOQ
Size
Custom
Product Keywords
ESD IXPE foam tray
Features:
1. With conduction path / network inside. excellent anti static performance;
2. It promotes the rapid release of electrostatic without using the environmental humidity. anti-static performance is not affected by the environmental humidity;
3. Permanent anti-static;
4. Excellent electrical conductivity, surface resistance: 103-109 Ω;
5. Buffer good performance: independent and fine pore closure;
6. High temperature resistance: IXPE maximum temperature 80℃
7. Chemical resistance: resistant to organic solvents, acids, bases, etc.;
8. No chemical corrosion: It has no corrosion to the components and packaging;
9. Heat insulation, sound insulation, water absorption, moisture;
10. Good processing performance, easy molding.
Material Specification of Conductive PE Foam
1.Basic Process
The said product is a close-cell, conductive foam. It is produced by compounding the PE resin with conductive fillers &
blowing agents to extrude certain sheets,then cross-linking and foaming. The basic process can be summarized to the following:
1.1 Pellitizing master batch by compounding PE resin with carbon black and AC foaming agents;
1.2 Extrude the said batch to make certain sheets with different thickness & width;
1.3 Cross link the said sheets under electric beam;
1.4 Make the cross linked sheets foam in foaming furnace
2..Norminal size
2.1 Normal size:
10m×1.2m×8mm； 10m×1.2m×5mm
2.2 Special size:
2.2.1 Special thickness such as 25mm, 20mm,15mm and 10mm should be ordered；
2.2.2 Small length, width and profile product are to be ordered.
3.Rawmaterial
5. Characteristics
