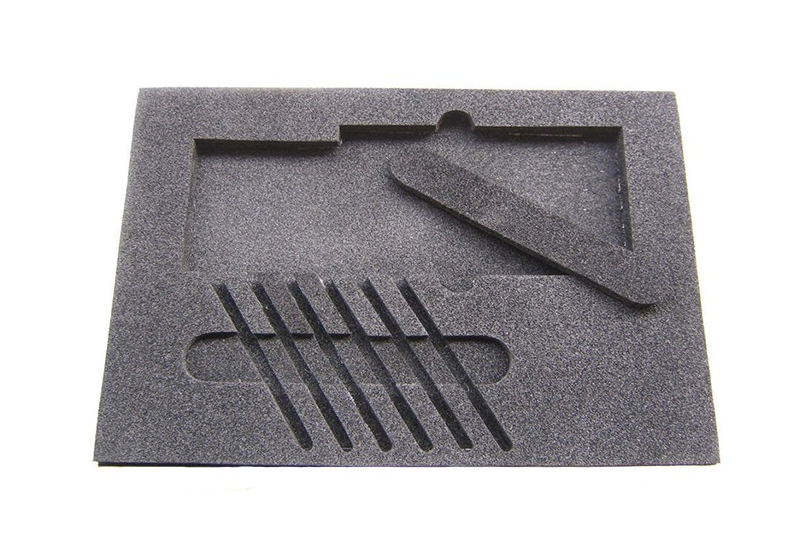

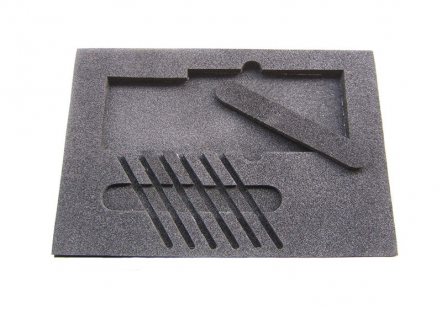

Conductive foam open cell polyurethane sponge insert
Conductive foam open cell polyurethane sponge insert
Conductive open cell Polyurethane is black ESD foam, usually called ESD PU foam. It contains the chemicals that absorb the air, the water forms a layer of water on the surface to achieve the anti static ESD effect.
Product Details
Conductive foam open cell Polyurethane Description:
Conductive Polyurethane foam includes the static resistant foam and ESD foam also conductive foam.
The static resistant foam would absorb the humidity in the air as the open cell foam, that would affect the valid time.
While the ESD PU foam and conductive PU foam could last for a long time comparatively.
| Technical Specification | |
| Thickness | 3mm-50mm, can be customized according to customer's requests. |
| Hardness | 30-70 Shore C |
| Temperature Resistance | - 60℃ to 120℃ |
| Color |
Normally black and red, other colors can be customized |
| Certification | RoHS, SGS, ISO9001, etc. |
| Surface Resistance |
103 - 109 Ω |
| Density |
EVA Foam 90-100 kg/m3; PU Foam 15-50 kg/m3; IXPE Foam 40-60 kg/m3 |
| Compressive Strength |
≥60kPa |
| Tensile Strength |
≥500kPa |
| Elongation At Break |
≥150% |
| Tearing Strength |
16N/cm |
