Conductive black color EVA foam sheet
Product Details

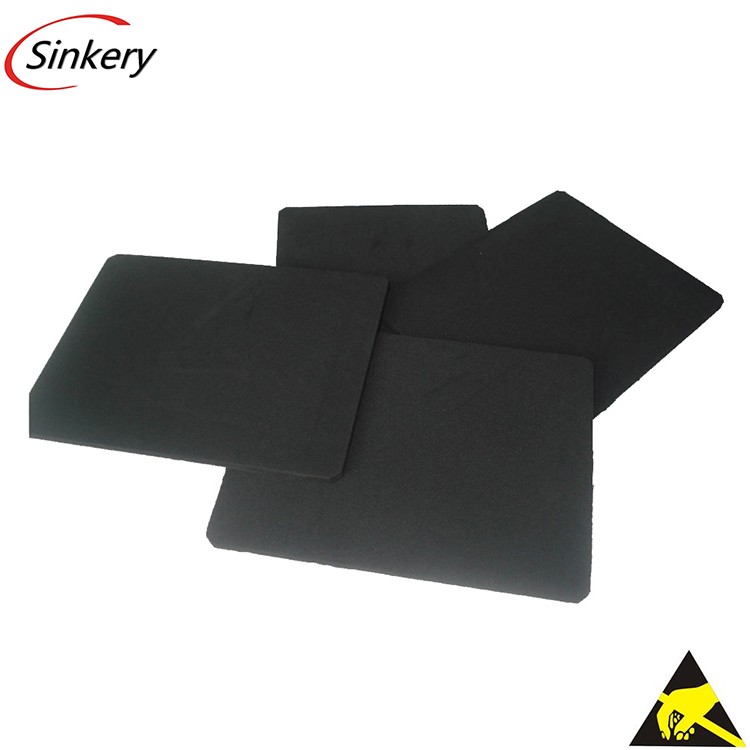

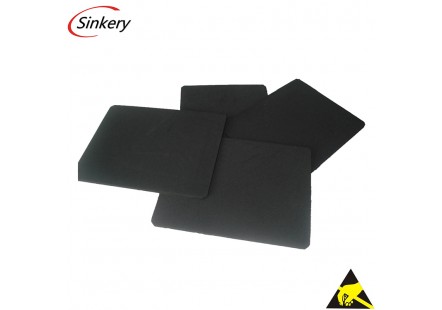

Conductive black color EVA foam sheet
1. It promotes the rapid release of electrostatic without using the environmental humidity.
2. Buffer good performance.
3. Excellent electrical conductivity, surface reistance: 103-109 Ω;
4. High temperature resistance: EVA maximum temperature 120℃;
5. Chemical resistance: resistant to organic solvents, acids, bases, etc.;
6. No chemical corrosion: It has no corrosion to the components and packaging;
7. Heat insulation, sound insulation, water absorption, moisture;
8. Good processing performance, easy molding.
Technical Specification | |
Thickness | 3mm-50mm, can be customized according to customer's requests. |
Hardness | 30-70 Shore C |
Temperature Resistance | - 60℃ to 120℃ |
Color |
Normally black and red, other colors can be customized |
Certification | RoHS, SGS, ISO9001, etc. |
Surface Resistance |
103 - 109 Ω |
Density |
Generally 90-100 kg/m3 |
Compressive Strength |
≥60kPa |
Tensile Strength |
≥500kPa |
Elongation At Break |
≥150% |
Tearing Strength |
16N/cm |
