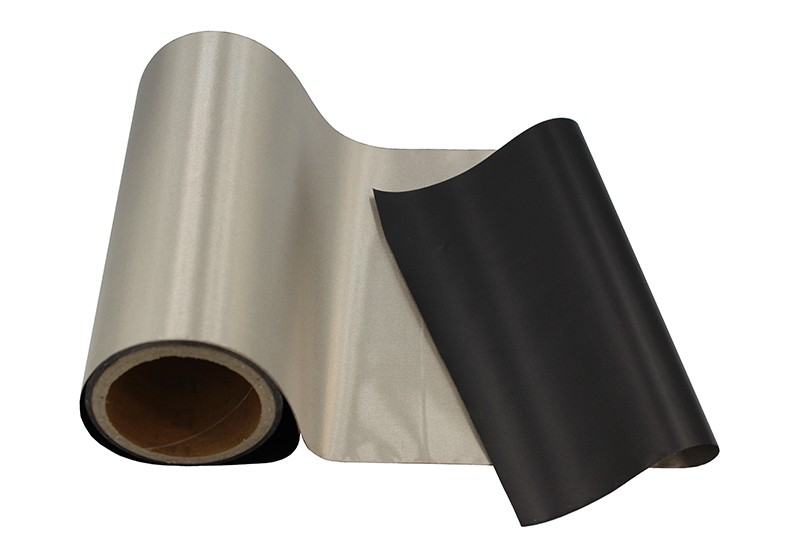

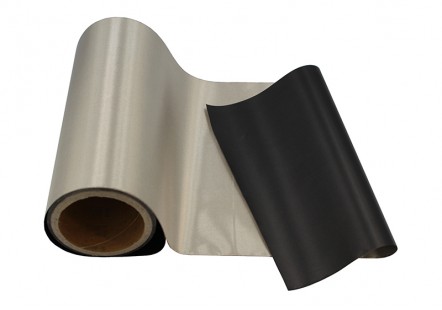

emi Protection Fabric

EMI means Electro Magnetic Interference, the conductive fabric could protect against electromagnetic effectively.The conductive fabric has the mental fiber which could form a zone to keep against the EMI outside.

Product Details

emi protection fabric Description:

Component: polyester fibre + copper-nickel

Color: Silver

Thickness: 0.08mm

Width: 1080mm

Density: 80g/m2

Type: Diamond Shape

Technology: vacuum plating

Description:

Item

Unit

Specification

Test Standard

Weight

g/m2

80±10

GB/T 4669-1995

Thickness

mm

0.08±0.01

FZ/T 01003-1991

Width

mm

1080±10

GB/T 4667-1995

Length

m

N/A

GB/T 4666-1995

Fabric Density

T

240±10

ASTM D3775

Shielding effectiveness

dB

≥60(min) in 10MHz~3GHz

SJ20524-1995

Salt spray test （5%48H35℃）

Ω/sq

<0.5

ASTM B117-03

Surface Resistance

Ω/sq

≤0.05

ASTM F390

Metal binding force

grad

Four Above

/

Product Categories

Related Products

emi Protection Fabric

emi Protection Fabric

Product Details

emi protection fabric Description:

About SINKERY

Products

Navigation

Contact

Item	Unit	Specification	Test Standard
Weight	g/m2	80±10	GB/T 4669-1995
Thickness	mm	0.08±0.01	FZ/T 01003-1991
Width	mm	1080±10	GB/T 4667-1995
Length	m	N/A	GB/T 4666-1995
Fabric Density	T	240±10	ASTM D3775
Shielding effectiveness	dB	≥60(min) in 10MHz~3GHz	SJ20524-1995
Salt spray test （5%48H35℃）	Ω/sq	<0.5	ASTM B117-03
Surface Resistance	Ω/sq	≤0.05	ASTM F390
Metal binding force	grad	Four Above	/
