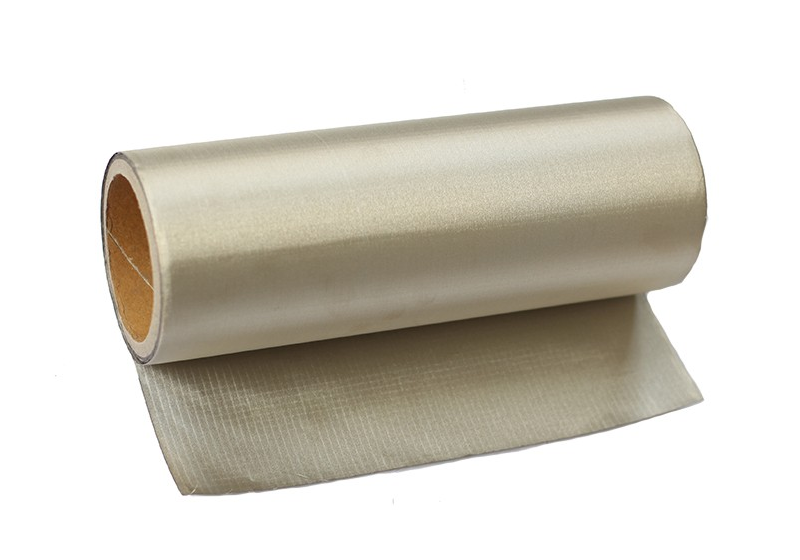

Conductive Fabric

Conductive fabrics are coated with mental elements on the Polyester fiber or Nylon fiber by vacuum plating.

Conductive Fabric Description:

The fiber of conductive fabric are coated with Copper Nickel or Silver, so it is conductive and shielding the static,

radiation and signal.

Technical Specification of Copper fabric
Component	Polyester fiber + Copper-Nickel
Color	Silver grey, Slilver, Black
Thickness	0.08 mm
Width	1080 mm
Density	80g±10/m²
Shielding effectiveness	≥ 60 (Min) in 10MHz - 3GHz
Salt spray test	<0.5Ω/SQ(5%, 48H, 35℃)
Surface resistance	≤0.05Ω/SQ
Type	Diamond shape, Plain shape, Grid shape, Single coating black, Double coating black
Techlonogy	Vaccum plating
Specific use	Industry, Tents, Bags, Meternity clothes, Curtains, Special uniforms
Function	Anti static, Anti radiation, Antibacterial

Technical Specification of Silver fabric
Component	31% Nylon + 69% Silver fiber
Color	Silver
Thickness	0.18 mm ± 0.01
Width	1500 mm
Density	150 g/m²
Shielding effectiveness	50Hz - 10GHz
Salt spray test	<0.5Ω/SQ(5%, 48H, 35℃)
Surface resistance	≤0.05Ω/SQ
Techlonogy	Blending
Specific use	RFID series Wallet, Card bag, Passport; Mobile phone signal shielding bag; Pregnant Women radiation protection clothing; Anti static clothing; Shielding curtain; Electronic communications industry; Heavily militarized shielding room.
