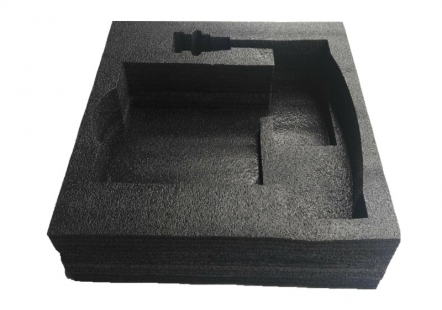

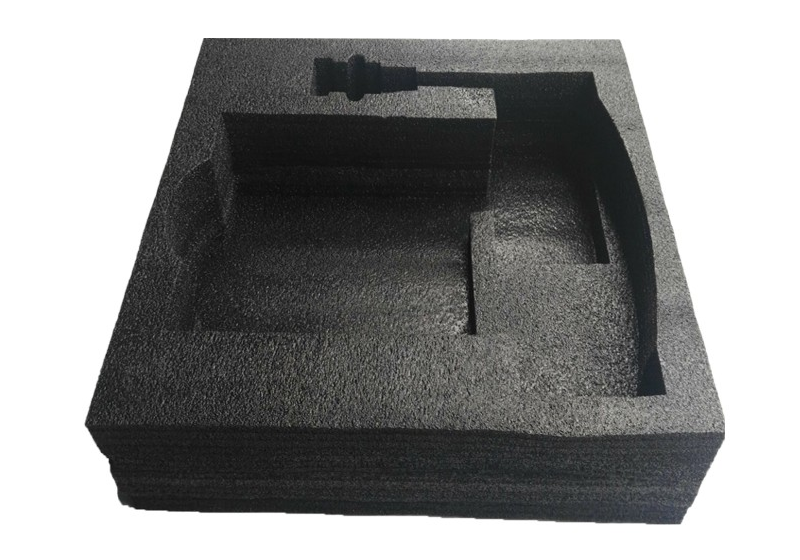

Anti Static Cross linked PE Packaging Foam
Product Details
Anti Static Cross linked PE Packaging Foam Description:
Product details
Material | IXPE |
Type | Conductive IXPE Foam |
Thickness | 1-100mm |
Color | Black |
Surface Resistance | 103-109 Ω |
Certificate | SGS, ISO9001, ROHS |
MOQ | No MOQ |
Size | Custom |
Product Keywords | ESD IXPE foam tray |
Features:
1. With conduction path / network inside. excellent anti static performance;
2. It promotes the rapid release of electrostatic without using the environmental humidity. anti-static performance is not affected by the environmental humidity;
3. Permanent anti-static;
4. Excellent electrical conductivity, surface resistance: 103-109 Ω;
5. Buffer good performance: independent and fine pore closure;
6. High temperature resistance: IXPE maximum temperature 80℃
7. Chemical resistance: resistant to organic solvents, acids, bases, etc.;
8. No chemical corrosion: It has no corrosion to the components and packaging;
9. Heat insulation, sound insulation, water absorption, moisture;
10. Good processing performance, easy molding.
Material Specification of Conductive PE Foam
1.Basic Process
The said product is a close-cell, conductive foam. It is produced by compounding the PE resin with conductive fillers &
blowing agents to extrude certain sheets,then cross-linking and foaming. The basic process can be summarized to the following:
1.1 Pellitizing master batch by compounding PE resin with carbon black and AC foaming agents;
1.2 Extrude the said batch to make certain sheets with different thickness & width;
1.3 Cross link the said sheets under electric beam;
1.4 Make the cross linked sheets foam in foaming furnace
2..Norminal size
2.1 Normal size:
10m×1.2m×8mm; 10m×1.2m×5mm
2.2 Special size:
2.2.1 Special thickness such as 25mm, 20mm,15mm and 10mm should be ordered;
2.2.2 Small length, width and profile product are to be ordered.
3.Rawmaterial
