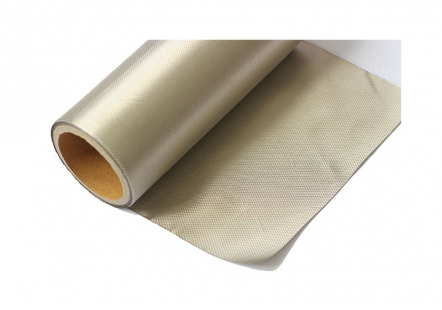

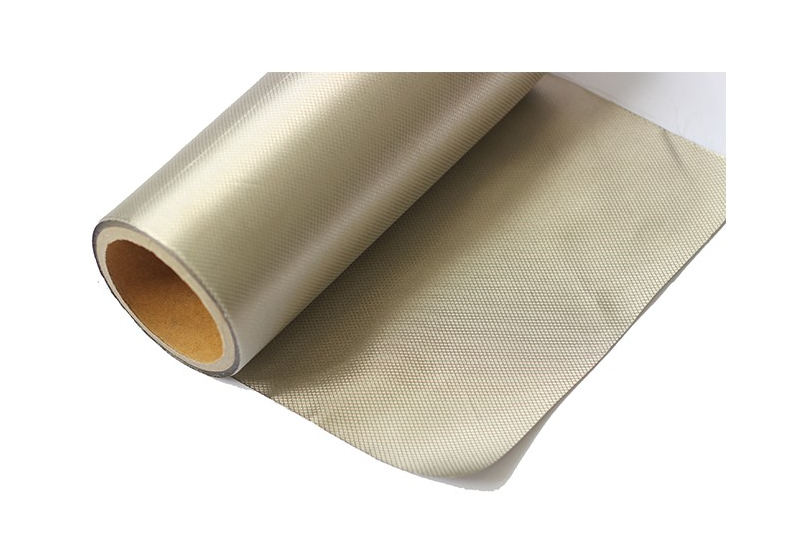

Anti radiation shielding conductive fabric
Anti radiation shielding conductive fabric
Conductive fabrics are made of Copper Nickel mental and Polyester fiber. The mental elements would prevent the radiation coming through the fabric.
Product Details
Anti radiation shielding conductive fabric Description:
Radiation is the emission or transmission of energy in the form of waves or particles through space or through a material medium. The fabric has the mental elements which could shield the radiation effectively.
| Technical Specification of Copper fabric | |
| Component | Polyester fiber + Copper-Nickel |
| Color | Silver grey, Slilver, Black |
| Thickness | 0.08 mm |
| Width |
1080 mm |
| Density | 80g±10/m2 |
| Shielding effectiveness |
≥ 60 (Min) in 10MHz - 3GHz |
| Salt spray test |
<0.5Ω/SQ(5%, 48H, 35℃) |
| Surface resistance |
≤0.05Ω/SQ |
| Type |
Diamond shape, Plain shape, Grid shape, Single coating black, Double coating black |
| Techlonogy |
Vaccum plating |
| Specific use |
Industry, Tents, Bags, Meternity clothes, Curtains, Special uniforms |
| Function |
Anti static, Anti radiation, Antibacterial |
