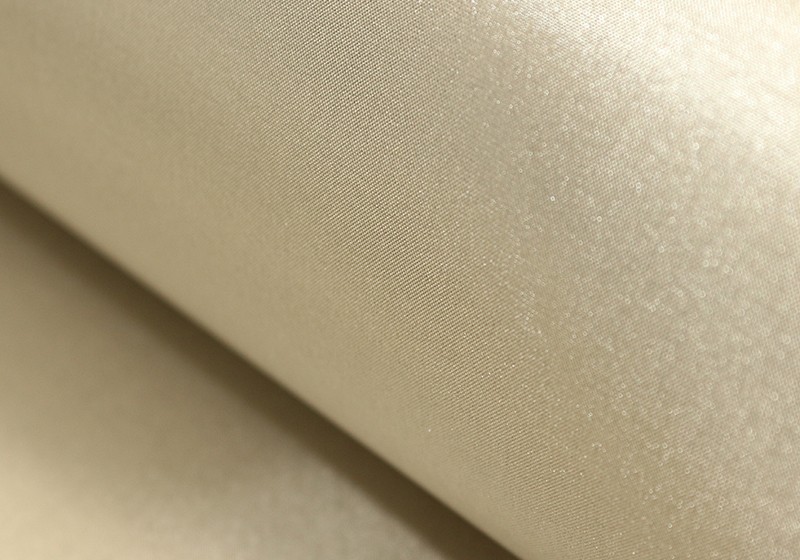

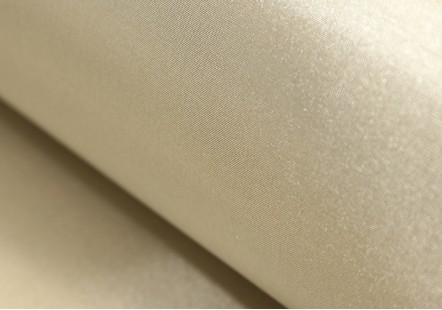

Anti Electromagnetic Fabric

The fabric is conductive fabric with copper nickel or silver coated polyester fiber inside, that would shield the electromagnetic outside.This anti electromagnetic fabric can be used on the cloth, underwear, tent, bedding. That all could block the effect of electromagnetic.

Product Details

Anti Electromagnetic Fabric Features:

Component: polyester fibre + copper-nickel

Color: Silver

Thickness: 0.08mm

Width: 1080mm

Density: 80g/m2

Type: Diamond Shape

Technology: vacuum plating

Description:

Item

Unit

Specification

Test Standard

Weight

g/m2

80±10

GB/T 4669-1995

Thickness

mm

0.08±0.01

FZ/T 01003-1991

Width

mm

1080±10

GB/T 4667-1995

Length

m

N/A

GB/T 4666-1995

Fabric Density

T

240±10

ASTM D3775

Shielding effectiveness

dB

≥60(min) in 10MHz~3GHz

SJ20524-1995

Salt spray test （5%48H35℃）

Ω/sq

<0.5

ASTM B117-03

Surface Resistance

Ω/sq

≤0.05

ASTM F390

Metal binding force

grad

Four Above

/
